Ytterbium

Ytterbium Fluoride

CAS #: 13760-80-0

Molecular Formula: YbF3

EC No.: 237-354-2

Service Hotline+86-400-6632276

Product Details

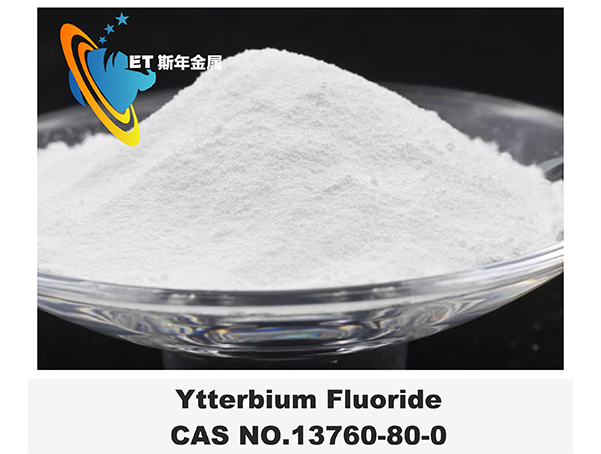

Ytterbium fluoride is a Inorganic compound, chemical formula is YbF3, white powder, density is 8.2 g/cm3. Melting point 1052 ° C, boiling point>2200 ° C, insoluble in water, insoluble in hydrochloric acid, nitric acid and sulfuric acid, but soluble in Perchloric acid. It has hygroscopicity in the air and is relatively stable.

Applications:

1. Prepare scintillators that meet the requirements of modern medical image display technology and nuclear science.

2. Rare earth crystal laser materials.

3. Fluoride glass、Optical fiber and rare earth infrared glass.

4. Manufacturing special alloys and electrolytic production of Ytterbium metallic.

Product Series

Product

Product Code

Security Data

Technical Data

Ytterbium Fluoride 99.99%

ET-YbF

Ytterbium Fluoride.pdf

Ytterbium Fluoride YbF 3 99.99%.pdf

Properties (Theoretical)

Molecular Formula	F₃Yb
Molecular Weight	230.04
Appearance	White crystals
Melting Point	1,052° C (1,926° F)
Boiling Point	2,380° C (4,316° F)
Density	8.20g/cm3
Precise Quality	230.934 g/mol
Single Isotope Mass	211.935706 Da

Health & Safety Information

Signal Word	Danger
Risk Statement	H301 + H311 + H331
Dangerous Code	T
Preventive Instructions	Missing Phrase - N15.00950417-P261-P280-P302 + P352 + P312-P304 + P340 + P312-P403 + P233
Flash Point	Not applicable
Risk Code	23/24/25-32
Safety Statement	26-36/37/39-45
RTECS Number	ZG2487500
Transportation Information	UN 3288 6.1 / PGIII
WGK Germany	3
GHS Pictogram

Packaging Specifications:

Standard packaging: 50 kg/drum, 500 kg/pallet, ton bags

Sample packaging: 500 g/bag, 1 kg/bottle

Ytterbium Fluoride

Purification and separation of other impurities from chloride raw materials, introduction of carbon dioxide to form carbonates, and reaction with high-purity fluoride in special equipment to generate fluoride salts. The reaction products are washed with hot pure water, and dried and dehydrated in a vacuum furnace. Adjust the temperature to remove free fluorine. Injecting hydrogen gas to transform the crystal phase changes the refractive index. Purify and separate other impurities from chloride raw materials, control the concentration and temperature, and add fluoride salt to react and precipitate to generate fluoride salt slurry. Wash with hot pure water to remove anions. Vacuum furnace dehydration. Remove free fluorine. Injecting hydrogen gas to transform the crystal phase changes the refractive index.
